Underground Rainwater Storage Tanks

Underground Rainwater Storage Tanks

Product Code: OEPS1

£159.00


Add to cart

Product description

These water storage tanks are manufactured from high density virgin polyethylene which is rotationally moulded for extra strength and durability.
Designed primarily for instillations below ground they are suitable for a variety of applications including pumping stations, rainwater harvesting and separators.

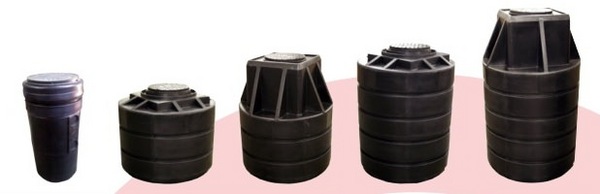

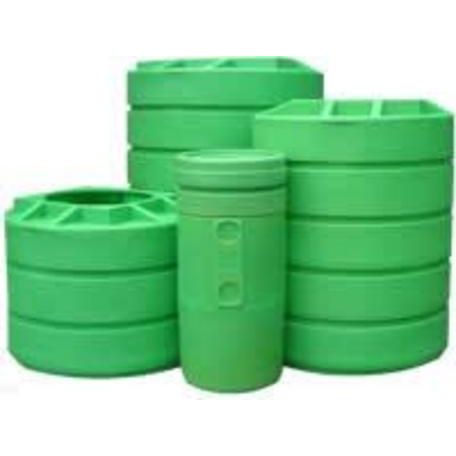

Available in several sizes with capacities ranging from 350Litres to 6500Litres all tanks are single piece mouldings which are relatively light in weight however still retain their structural strength and robustness.

Rainwater can be collected from a roof area via a drainpipe or ground run-off can be collected from a concrete surface and directed into the tank. Each tank is fitted with a fixed man-hole cover enabling access from the surface.

The tanks may be drilled and bulk-head fittings used to create a drainpipe entry point or it is possible to have a section of plastic drainpipe welded into the top of the tank at extra cost. A hole can be drilled at the top of the tank to allow water in the tank to be drawn off.

The simplest method is to use a portable suction pump at the surface to draw water through this hole to water the garden via a hose-pipe for example or to fill a smaller water butt on the surface. Alternatively a submersible pump could be used inside the tank and the power cable routed out through the top of the tank via a cable gland. Please note these tanks are not suitable for the storage of drinking water.

Optional Access Hatch Covers
Pedestrian rated access inspection hatch cover.
Traffic rated access hatch cover.

For ground installation these tanks must be set into concrete - installation guide (PDF 423kB).

OEPS1 - 350 litre Vertical Tank - £147
Capacity: 350 litres (77 gallons).
Diameter: 630mm (25")
Height: 1275mm (50").
Cover diameter: 450mm (18").
Weight: 13kg

OE1209 - 1150 litreVertical Tank - £327
Capacity: 1150litres (250gallons).
Diameter: 1260mm (49½").
Height: 1090mm (43½").
Cover diameter: 450mm (18")
Weight: 40kg

OE1214 - 1550 litre Vertical Tank - £373
Capacity: 1550 litres (344 gallons).
Diameter: 1260mm (49½").
Height: 1535mm (61½").
Cover diameter: 450mm (18")
Weight: 56kg

OE1215 - 1850 litre Vertical Tank - £415
Capacity: 1850 litres (400 gallons).
Diameter: 1260mm (49½").
Height: 1690mm (68").
Cover diameter: 450mm (18")
Weight: 56kg

OE1220 - 2250 litre Vertical Tank - £462
Capacity: 2250 litres (500 gallons).
Diameter: 1260mm (49½").
Height: 2135mm (85½").
Cover diameter: 450mm (18")
Weight:72kg

OE1518 - 3400 litre Vertical Tank - £872
Capacity: 3400 litres (755 gallons).
Diameter: 1560mm (61½").
Height: 1900mm (75").
Cover diameter 450mm (18")
Weight:105kg

OE2019 - 4500 litre Horizontal Tank - £1113
Capacity: 4500 litres (1000gallons).
Diameter: 2210mm (88").
Height: 1940mm (85½").
Length: 2150mm (86").
Cover diameter 450mm (18")

OE2021 - 6500 litre Horizontal Tank - £1356
Capacity: 6500 litres (1444gallons)
Diameter: 2210mm (88")
Height: 2100mm (88")
Length: 2150mm (86")
Cover: diameter 450mm (18")
Weight:260kg

Delivery 7 days
